OEM service available

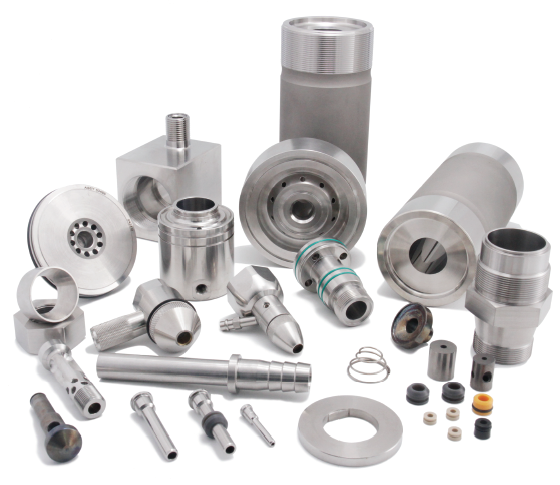

With our superior facilities and rich experience in the waterjet industry, we are capable to develop various
kinds of plastic and metal parts for waterjeting, such as high-pressure cylinders, mixing chambers, cutting
heads, waterjet nozzles.
UHP Pump Parts
- DESCRIPTION
- HP Seal Kit, 60K Includes 4 HP seals, 4 hoops, 2 bronze backups and 1 HP grease packet
- Hp Seal Kit, 60K W/O Bronze Backup Includes 4 HP seals, 4 hoops and 1 HP grease packet
- HP Seal, .875 ID ( Includes O-Ring)
- Hoop for .875 ID Seal
- Bronze Backup
- Check Valve Body, 60K
- Check Valve Assembly, 60K Includes check valve, outlet body & check valve repair kit
- Outlet Body
- Check Valve Repair Kit Includes seat, outlet & inlet poppet, spring, screw, housing, 2 o-rings
- Outlet Poppet
- Inlet poppet
- Insert
- Retaining Screw
- Inlet Poppet Housing
- DESCRIPTION
- Poppet Spring
- Check Valve O-Ring
- Low Pressure Cylinder
- Low Pressure Seal Kit-ESL
- Low Pressure Seal Kit
- Hydraulic Piston
- HP Cylinder, 60K
- Back-up seal sleeve
- Right End Bell Assembly, 60K
- Left End Bell Assembly, 60K
- Spacer Oil Seal
- High Pressure End Cap
- Plunger Retainer, Made of harder material for longer life
- High Pressure Plunger, 60k Ceramic plunger
- DESCRIPTION
- Piston Assembly Includes 2 ceramic plungers, 2 plunger retainers, 2 snap rings & piston
- Retrofit to ESL Includes 2 ceramic plungers, 2 ESL check valve repair kits, 2 rod seals & 1 HP seal kit
- Intensifier Short Block Assembly
- Bleed Down Valve Assembly
- Bleed Down Valve Body
- Bleed-down Valve Repair Kit
- Firing Pin, Mechanical Shift
- Shifting Pin, Electrical Shift
- Mechanical Shift and Pilot Assembly
- Shift Valve
- Pilot Valve
- Oil Seal Bleed-Down Valve
- Tie Rod
- Hex Nut
Cutting Head
Components
- DESCRIPTION
- Nozzle Retainer
- Mixing Chamber
- Nozzle Body, Short (Length 4.33")
- Nozzle Body, Long (Length 8.11")
- Rubber Splash Guard
On/Off
Valve Parts
- DESCRIPTION
- On/Off Valve Repair Kit, Insta 1 Includes Poppet Stem, O-Ring, Poppet Seat, HP Valve Seal, Seal Backup Ring
- Poppet Stem, Insta 1
- Poppet Seat, Insta 1
- High-Pressure Valve Seal, Insta 1
- Seal Backup Ring, Insta 1
- O-Ring, Insta 1
- Valve Body, Insta 1
- On/Off Valve Screw
- Insta 1 Air Actuator (normally closed)
- Seal Tool
